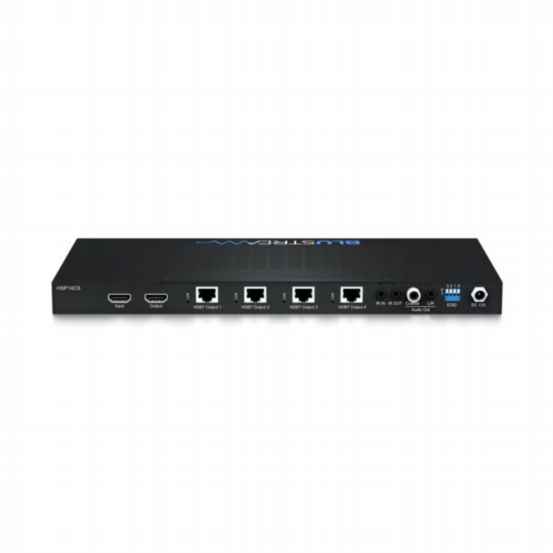

Blustream HSP14CS 4-Way HDBaseT CSC Splitter

Blustream
Blustream HSP14CS 4-Way HDBaseT CSC Splitter

BU-HSP14CS

The Blustream HSP14CS is a professional 4-way HDBaseT™ CSC splitter designed for reliable distribution of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) signals to up to four simultaneous HDBaseT™ outputs. Engineered for performance and flexibility, it supports independent down-scaling of 4K video inputs, ensuring compatibility across mixed display resolutions — allowing lower-resolution screens to receive a downscaled feed while maintaining full 4K UHD quality on higher-definition displays.

Features & Benefits

  • Distributes 1 HDMI source to 4 simultaneous HDBaseT™ outputs
  • 1 HDMI loop out for local display connection or daisy-chaining multiple devices
  • Advanced HDBaseT™ technology enables video, audio, and control over a single CAT cable
  • CSC (Colour Space Conversion) supports HDMI 2.0 (18Gbps) including HDR
  • Extends HDMI 1080p signals up to 70m and 4K 60Hz 4:4:4 up to 40m
  • Audio breakout to both analogue L/R (3.5mm) and coaxial digital (RCA) outputs
  • Supports all major HDMI audio formats, including: Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio
  • PoC (Power over Cable) powers compatible HDBaseT™ receivers
  • Advanced EDID management via 4-pin DIP switch
  • HDCP 2.2 compliant for full content protection
  • Video Input: 1 x HDMI Type A (19-pin, female)
  • Video Outputs: 4 x HDBaseT™ RJ45, 1 x HDMI Type A (19-pin, female)
  • Audio Outputs: 1 x RCA (S/PDIF), 1 x 3.5mm stereo jack (L/R)
  • IR Input: 1 x 3.5mm stereo jack
  • IR Output: 1 x 3.5mm mono jack
  • EDID Control: 4-pin DIP switch
  • Power Supply: 12V / 5A DC
  • Casing Dimensions (W x D x H): 307mm x 144mm x 23mm
  • Dimensions (with connections): 307mm x 152mm x 31mm
