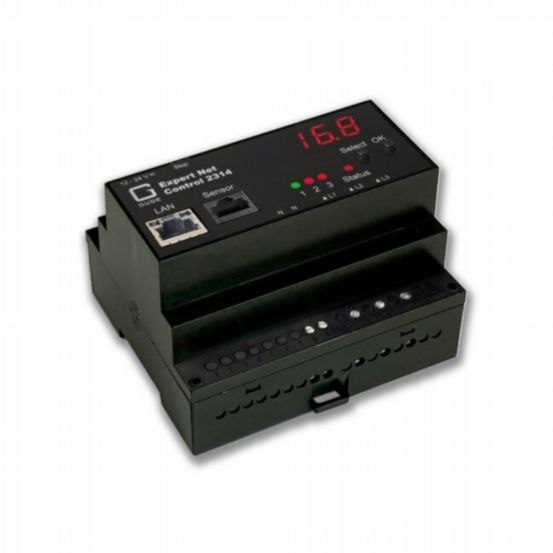

GUDE-Expert Net Control 2314-1 3x Relays (16 A) 1 sensor connector energy metering rail-mounting
GS-23141
IP relay control with 3 channels and energy metering Expert Net Control 2314-1 for more security and surveillance in IT infrastructure Demonstrably fewer and shorter outages of your critical IT and AV infrastructure More control through remote access to switchable relay outputs Detect AV and IT problems at an early stage: Proactive power and environment monitoring Increased energy efficiency (Green IT and AV): Reduction of electricity costs and CO2 emissions
Features & Benefits
- Key Features Remote switching of 3 relay outputs Detailed energy measurement per output Connector for plug-and-play sensors Fast and easy mounting on DIN rail NTP function can be activated Special High-Inrush relays prevent sticking of relay contacts during witch on pulse peaks Switching functions 3 switchable, potential-free relay outputs with 16 A switching capacity Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH, MQTT and serial interface Automatic switching of relay outputs depending on sensor thresholds or inputs possible Programmable switch-on/switch-off sequence Simultaneous switching on of several switching outputs is prevented by automatic latency of 1 second Output states are indicated by two-color LEDs on the front panel Relays have high contact reliability even with very small loads Self-healing function thanks to 3-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary Metering functions Power consumption metering (kwH) with 2 energy counters per output: one counter counts consistently, the other counter is resettable Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr) Security 1 connector for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet) Encrypted e-mails (SSL, STARTTLS) Access protection by IP access control Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH Password protected access Operation Easy-to-read LED display for displaying total current, IP address and sensor values Firmware update via Ethernet during operation (no restart required) Simple and flexible configuration via web browser, Windows or Linux program Dynamic assignment of an IP address via DHCP or manual assignment of static IP address Rapid commissioning thanks to free and reliable drivers from our technology partners
