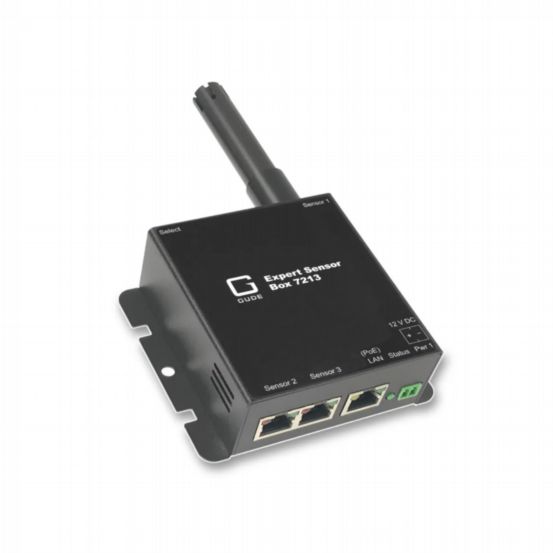

GUDE-Expert Sensor Box 7213-12 LAN temperature/humidity sensor Power-over-Ethernet (PoE)
GS-721312
LAN temperature/humidity sensor Power-over-Ethernet (PoE)
Features & Benefits
- Electrical Connections 1 connector for external power supply (industrial clamp, 2-fold) 2 sensor connectors RJ45 for optional sensors for temperature, humidity, air pressure sensor 1 Ethernet connector RJ45 (10/100 Mbit/s) Power supply also via Power-over-Ethernet (7213-11, 7213-12, 7213-13) Technical Details Powdered sheet steel case, LxWxH: 100 x 34 x 90 mm (incl. brackets, excl. sensor pipe) Plastic sensor pipe, Length: 94 mm, Diameter: 15 mm Weight: approx. 300 g Operating temperature: 0-50 °C Operating temperature sensor pipe: -20 – 80 °C Storage temperature: -20 – 70 °C Relative humidity: 0 – 95 % (non condensing) Measuring range temperature: -20 °C to +80 °C at +/-0,3 °C (typical) and 5 °C to +60 °C at +/-0,2 °C (typical) Measuring range humidity: 0 -100 % at +/-3 % (typical) Measuring range air pressure 300-1100 hPa: -20 °C to +65 °C at +/- 2 hPa (typical) and 0 °C to +65 °C to +/- 1 hPa (typical) Order code 7213-1: Temperature sensor 7213-2: Temperature and humidity sensor 7213-3: Temperature, humidity and air pressure sensor 7213-11: Temperature sensor, PoE 7213-12: Temperature and humidity sensor, PoE 7213-13: Temperature, humidity and air pressure sensor, PoE Scope of delivery Expert Sensor Box 7213-1, 7213-2, 7213-3, 7213-11, 7213-12, 7213-13 Power supply 7903 (only with 7213-1, 7213-2, 7213-3) Quick start guide
