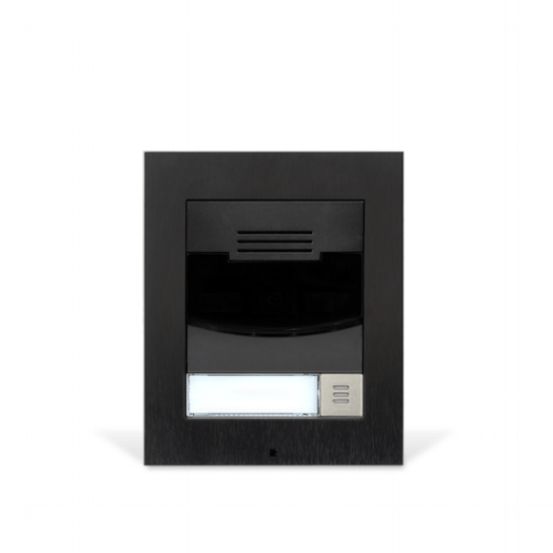

Surface Mount Single Height Door Station - Black

Savant - control, multi-room audio & speakers
Surface Mount Single Height Door Station - Black

SS-DOR-SMB

DOR-SMB is a Savant Surface Mount Single Height Door Station - Black station

Variations

Features & Benefits

  • Key Features:
  • The Savant Door Station is a luxury IP door intercom that provides reliable access control, communication and video surveillance in a compact form factor. If required mounting plate sold separate. NOTE - This hardware is being provided for pre-installation. Savant software and Pro 8 App support for this product will be added in future release.
  • Microphone and speaker built in
  • Wide-angle HD camera with infrared light and night vision
  • Tamper switch available for detecting unauthorized device intrusions
  • Powered directly from the LAN equipped with PoE 802.3af supporting network elements
  • Power: POE: PoE 802.3af (Class 0 - 12.95W) Power Supply: 12V ± 15%/ 2A DC
  • Connections: Ethernet: 10/100BASE-TX with Auto-MDIX, Relay: NC/NO contacts, max 30 V/1 A AC/DC, GPIO: 8 to 12 V DC depending on Power supply (PoE: 10 V; adapter: source voltage minus 2 V), max 400mA
  • Environmental: Operating Temp: -40°C – 60°C Operating Humidity: 10%-95% Certification: IP54, IK08
  • Camera: Resolution JPEG: 1280x960
  • Resolution In Call: 640x480
  • Viewing Angle: 120° (H), 90° (V), 145° (D)
  • Night Vision: Yes
  • Dimensions:
  • Width: 4.21in (10.7cm)
  • Height: 5.12in (13cm)
  • Protrusion: 1.1in (2.8cm)
  • For Pre-Construction see 9155017 or 9155068
