HDBaseT Extenders with 4K HDR Up To 100m

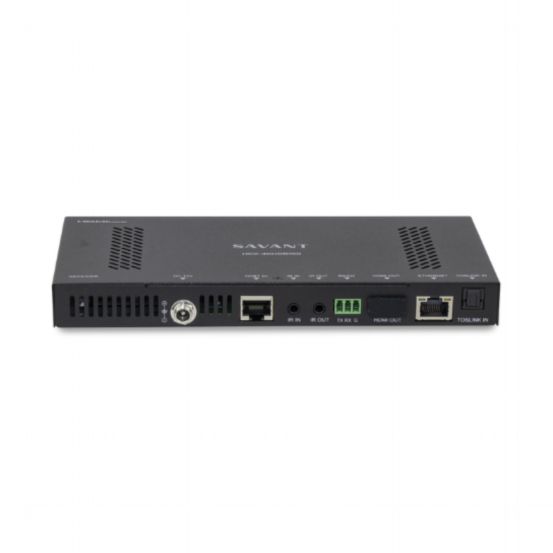

SS-HCX-4KHDR100
Savant's HDBaseT 4k 100m extension offers full HDMI 2.0 compliance supporting HDR (High Dynamic Range) or 4K@60Hz with 4:4:4 chroma sampling and can transport Ultra HD/4K, multi-channel audio with TOSLINK breakout, and High Dynamic Range (10 bits support) content over a single CATx cable. A low profile slim design makes it ideal for limited space installation, such as behind televisions and projectors.
Variations
Features & Benefits
- Supports resolutions up to 4K@60Hz (4:4:4)
- Supports HDR (High Dynamic Range) formats
- HDCP 2.2 compliant
- High bandwidth support - up to 18 Gbps
- Extends HDMI up to 328 ft. (100m) at Ultra HD/4K or 1080p using Cat6a or Cat7
- Extends HDMI up to 230 ft. (70m) at Ultra HD/4K and up to 328 ft. (100m) at 1080p using Cat6
- Includes TOSLINK audio connections on both ends for return channel audio
- Can use HDMI audio from the display to the TOSLINK Out on the Transmitter side
- Two channel PCM return HDMI audio from the display can be output on the balanced analogue output on the Transmitter
- Power over HDBaseT, only one power connection needed
- Bi-directional RS232 & IR extension
- CEC pass-through
- Mounting bracket included
